Sugarcane Combine Harvester 4GQ-1D
-
KF 4GQ-1D 190HP Sugarcane Combine Harvester offers power, comfort, and efficiency.
products profile
Chenhan Tech’s latest series, 4GQ-1E 180HP Sugarcane Combine Harvester offers power, comfort, and efficiency.
4GQ-1D Sugarcane Harvester – Chenhan Agricultural Equipment Technolog
- Compact design with excellent maneuverability and reduce ground compaction;
- Harvesting row from 1.1m to 1.5m;
- Upgraded collecting, cutting, and extracting system, for reduced cane loss, and increased productivity;
- Large, premium cab integrates the latest technology: digital color display monitor, side control panel with multi-function control lever, AC, GPS, radio, surround cameras and front-rear high-luminosity lights;
- Simple maintenance, operator comfortable, provide good visibility, keep operator relaxed and safe during long working hours.
products details
Sugarcane Combine Harvester 4GQ-1E
Sugarcane Combine Harvester 4GQ-1D
The segmented sugarcane harvester is mainly composed of tail cutter, disassembler, sugarcane inversion, vertical, root cutter, feeding sugarcane, conveyor, segmentation machine, second screen machine and other parts.
The leaf peeling device is similar to the sugar leaf peeling machine. In addition, the pellet feed wheel in the leaf stripping device. There is a row of impellers and conveying wheels at the back. There is a sugarcane box or bucket at the rear of the machine. During operation, the whole cane stem is sent by the feeding wheel to peel off the leaves. The blades leave the machine by the row of impellers. The stems are sent into the sugarcane box or bucket by the conveying wheel.

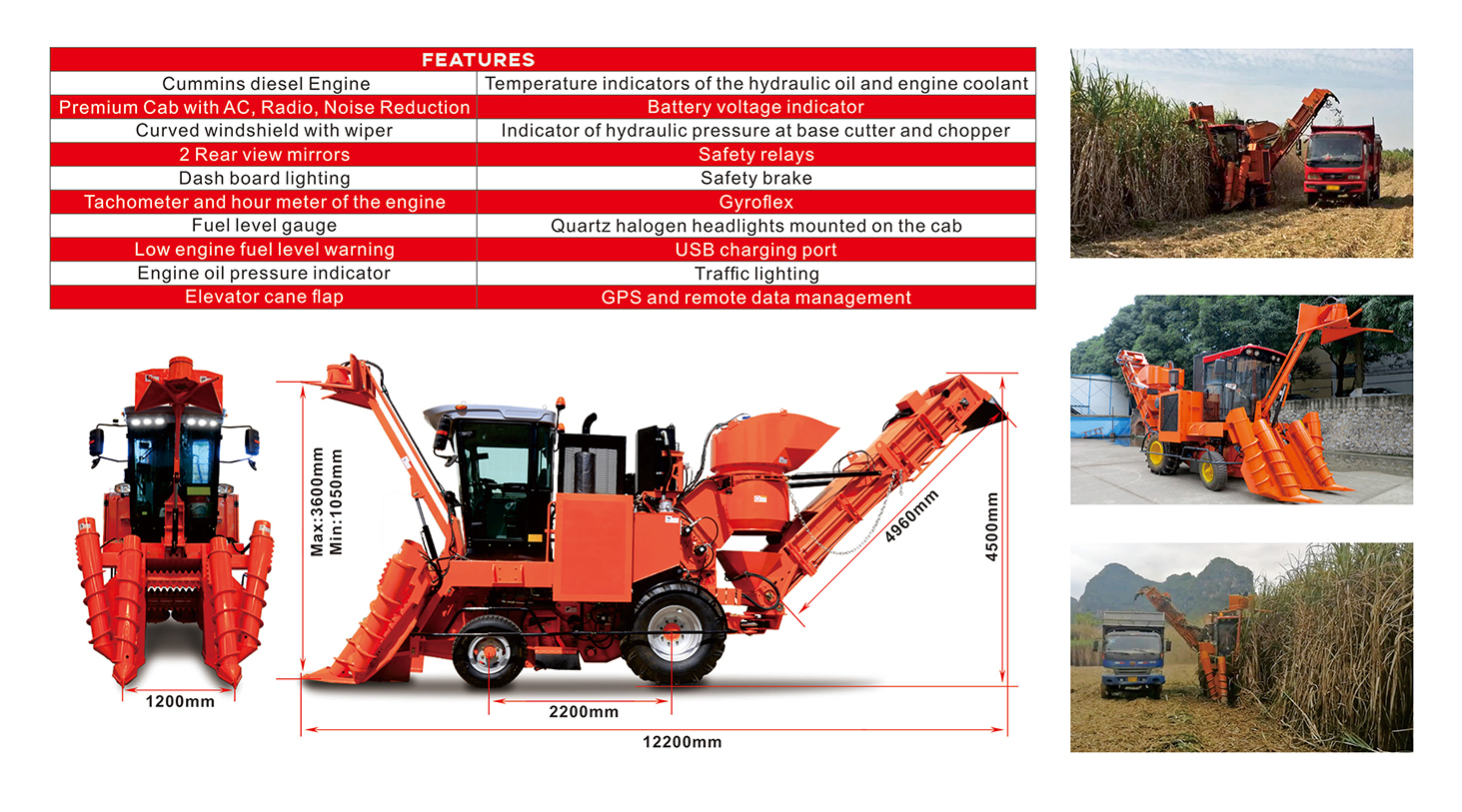

Technical parameters
| Manufacturer | CHENHAN TECH |
| Model | 4GQ-1D |
| Drive Type | Self-propelled RWD |
| Max Operating Dimension(mm) | 12200x2560x4500 |
| Weight(kg) | 8500 |
| Wheel Base(mm) | 2200 |
| ENGINE | |
| Manufacturer | Cummins |
| Fuel Type | Deisel |
| Engine Power(kW/hp) | 140/190 |
| Rated Speed(RPM) | 2200 |
| Cylinder | 6 |
| Aspiration | Turbo, After-cooler |
| TRANSMISSION | |
| Type | Hydrostatic |
| Travel Speed（km/h） | 0-20 |
| CAPACITY | |
| Fuel Tank(L) | 213 |
| Hydraulic oil tank(L) | 220 |
| TYRES | |
| Front Tyres | 10.5/65-16 |
| Track Width(mm) | 1650 |
| Rear Tyres | 16.9-28 |
| Track Width(mm) | 1500 |
| TOPPER | |
| Height Range (mm) | 1050~3600 |
| Height Adjustment | Hydraulic |
| CROPE DIVIDER | |
| Distance between the points (mm) | 1200 |
| Spiral Angle (°) | 30 |
| Height adjustment | Hydraulic |
| BASE CUTTER | |
| Drive | Hydraulic and reversible |
| Number of Discs | 2 |
| Number of Blades | 10 |
| Distance between center of discs (mm) | 535 |
| Space to the ground(mm) | 0 ~ 262 (adjustable) |
| ELEVATOR | |
| Floor Width(mm) | 850 |
| Length(mm) | 4960 |
| Slewing angle (°) | 170 |
| Max Unloading Height(mm) | 5000 |
