55HP Agriculture Farm Tractor KF 4055
-
55HP Agriculture Farm Tractor KF 4055 offers the power and the adaptability to cover workload with ease.
Equipped with YTO engine, 12F+12R gearbox and live PTO.
Suitable for a wide range of applications, from agriculture operations and grounds maintenance, to i55HP Agriculture Farm Tractor KF 4055ndustrial and construction sites.
Available from 55 to 80 HP.
- PDF Download
products profile

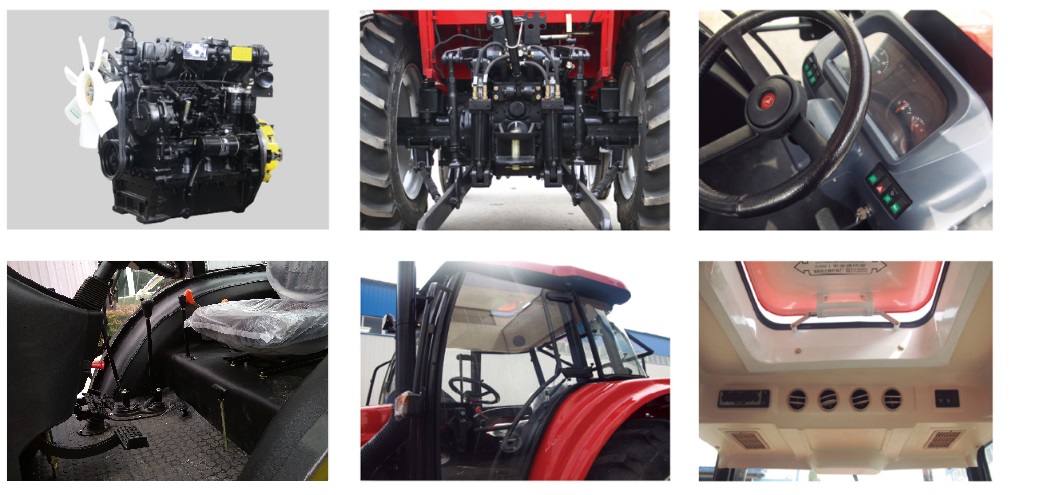

- YTO engine is assembled to provide high horse power along with low fuel consumption and strong power;
- Enhanced paddy front axle with smaller turning radius, being flexible and reliable; A live PTO fulfills rotary, harvesting, planting, fertilizing, etc.;
- Double fuel tank and powerful traction can match with large agricultural machinery;
- Tilling depth can be controlled efficiently;
products details
55HP Agriculture Farm Tractor SJH 4055
55HP Agriculture Farm Tractor KF 4055
55HP Agriculture Farm Tractor KF 4055 offers the power and the adaptability to cover workload with ease. Equipped with YTO engine, 12F+12R gearbox and live PTO.Suitable for a wide range of applications, from agriculture operations and grounds maintenance, to i55HP Agriculture Farm Tractor KF 4055ndustrial and construction sites. Available from 55 to 80 HP.
Technical parameters
| Model | KF 4055 | KF 4065 | KF 4070 | KF 4080 | |
| Overall dimension (mm) | 4030 (L) | ||||
| 1850 (W) | |||||
| 2650 (Sunroof) | |||||
| Min.Ground Clearance (mm) | 350 (to transfer case) | ||||
| Wheel Tread (mm) | Front | 1250 | |||
| Rear | 1250~1550 (1350 as factory set) | ||||
| Structure Weight (kg) | 1965 | ||||
| Counter weight (kg) | Front | 120 | |||
| Rear | 300 | ||||
| Engine | Model | YT4A2-23 | YT4B4-22 | LR4B5-23 | |
| Cylinders | 4 | ||||
| Rated Power (kW) | 40.5 | 48 | 55.1 | 59 | |
| PTO Rotating Speed (r/min) | 540/1000 | ||||
| Tyre | Front | 8.3-20 | 8.3-24 | ||
| Rear | 11.2-28 | 11-32 | |||
| Gearbox | 12F+12R Michanical shuttle | ||||
| Speed (km/h) | 2.35 ～ 32.61 | ||||
