7YGS Sugarcane Transportation Self-Tipping Trailer
-
7YGS 6-ton 8-ton self side tipping Sugarcane Transport Trailer is a sugarcane transporter specially developed by Chenhan Technology. It has its own hydraulic station, strong carrying capacity, high reliability, and automatic cane unloading. Easy to operate, it is a special trailer for sugarcane transportation.
products profile
- STRUCTURE: Super-strengthened with double-tube steel profiles. However, the loading trolley also consists of double tubular steel profiles. And coated with metal plates. This allows for better visualization of loading and smooth unloading directions. Plus, it has 5 tilt hinges.
- HYDRAULIC CONTROL PANEL: Display for easy coupling and easy view. Hoses 3/4″ and standardized terminals.
- HEADER: Decentralized to avoid the the planting rows.
- OPTIONAL: Movable header, adjustable for fixing the positions, central or decentralized.

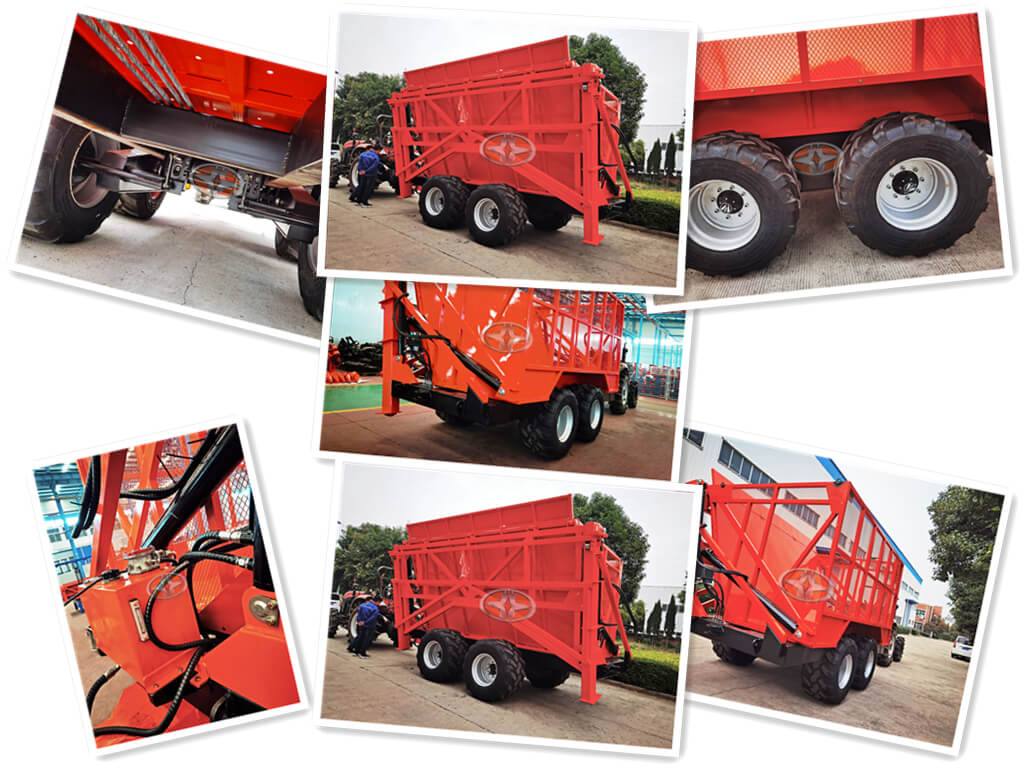

products details
Technical parameters
| Model | 7YGS-20 | ||
| Overall | Linkage Method | Trailer towed | |
| Dimension | Length (mm) | 7300 | |
| Width (mm) | 2780 | ||
| Hight (mm) | 3450 | ||
| Weight (kg) | 5000 | ||
| Capacity (kg) | 8000 | ||
| Volume (m²) | 20 | ||
| Discharge Height (mm) | 4350 | ||
| Discharge Angle | ≥39° | ||
| Axle form | Type | Dual axis (suspended) | |
| Wheel Base (mm) | 1460 | ||
| Wheel Track (mm) | 1900 | ||
| Tire | Model | 550/60-22.5 | |
| Number | 4 | ||
| Unloading | Type | Side discharge | |
| Cylinder | Number | 2 | |
| Volume (L) | 52 (two sets） | ||
